Repair Roland Jupiter 4 Analog Synthesizer

Roland Jupiter 4 Vintage Analog Synthesizer restoration project.. While opening up this lovely synth I immediately spotted this purple electrolytic (Matsushita) caps. These had to go, cause they intend to leak and damage the synthesizer.

While recapping I also measured every single new component I use as replacement (you never know..!). It was new to me, that even a new panasonic capacitor started to show signs of leakage.

Next thing I spotted was the leaky battery, which I replaced with a CR2032.

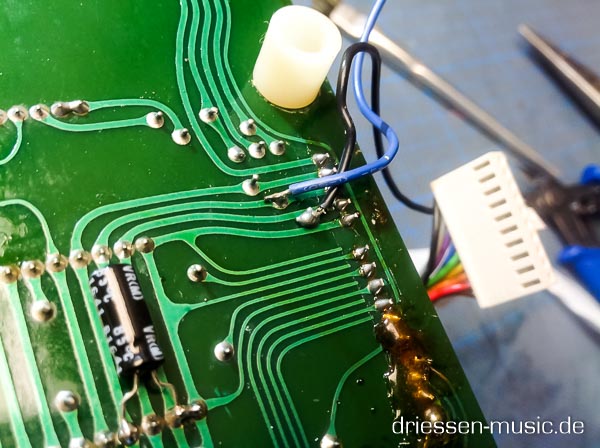

Here`s a picture from underneath. Don´t forget to remove the parts from the charging circuit !

I also cleaned keyboard, keyboard contacts, switches, potentiometer, sliders, pcb, case... I installed the MIDI kit by CHD ELEKTROSERVIS. The MIDI jack was installed behind one of these manufacturer plates. Unfortunately I have no pictures for you. Calibration was also performed on this beauty.
