Repair Roland CR-78 Vintage Drum Machine CompuRhythm

Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur

Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur

Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur

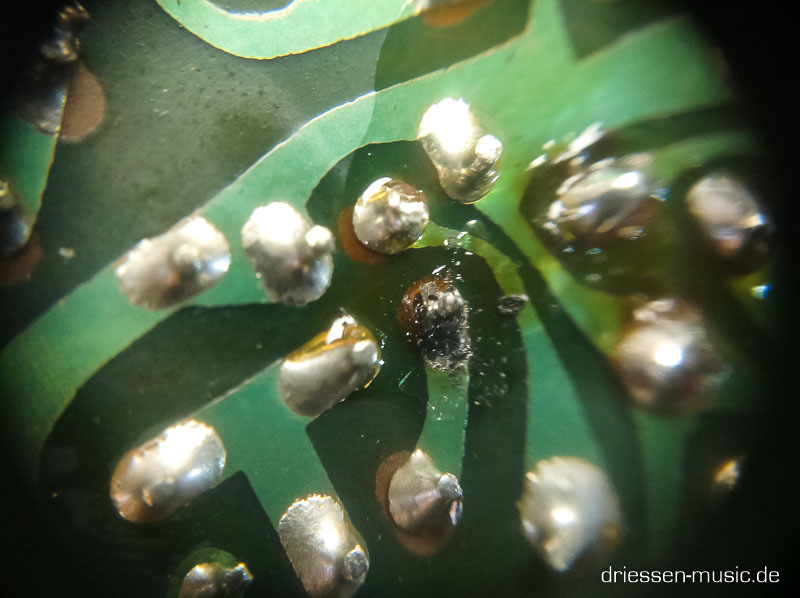

This Roland CR-78 CompuRhythm Vintage Drum Machine came in with just one pattern playing and some strange behavior when pushing fill in etc. Belive it or not but someone (previous tech?) did not carefully solder it`s repair or modifiction and left over some tin which then fell in between two legs of an IC which created a short between two legs and a resistor. Well, taake a closer look yourself…
Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur

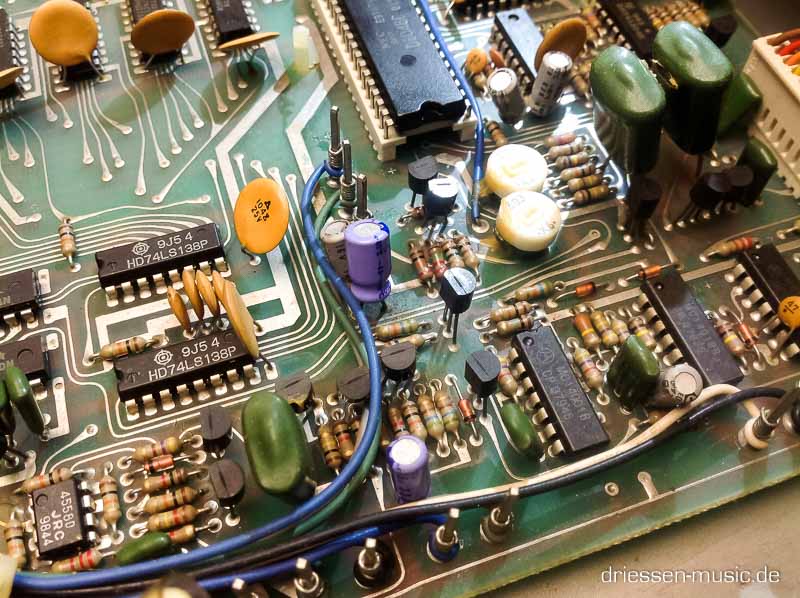

After removing this tiny bit of tin the Roland CR-78 came back to life and all presets could be selected. But I noticed, that not all instruments were playing (correct). This was a mixture of bad components (trimmer) and bad solder joints.
Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur
So I corrected that. What I then found were all electrolytic capacitors were leaky (here’s one example)
Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur
Finally I cleaned all potentiometers, switches and jacks to make good solid connection.
Repair Roland CR-78 Vintage Drum Machine CompuRhythm Reparatur

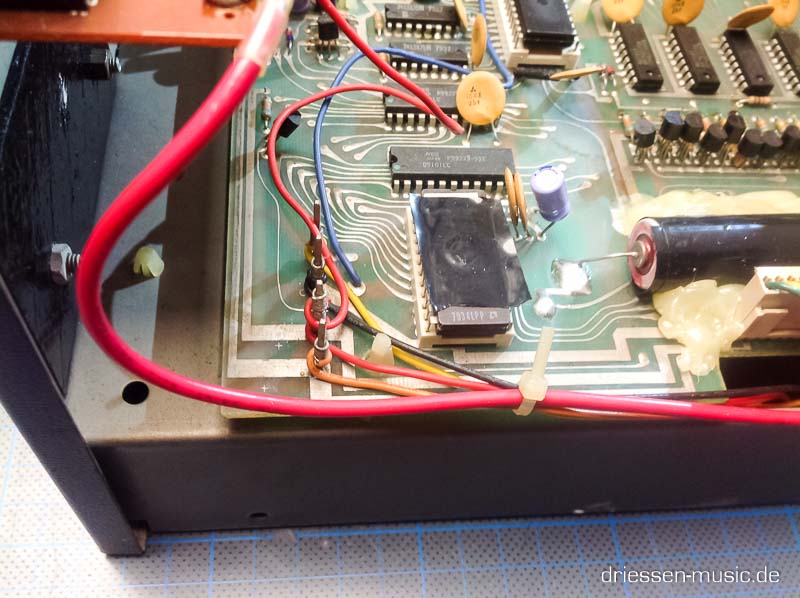

Just to clarify, I did NOT do this mains modification
There are lethal voltage exposed in electronic devices. Unless you know what you are doing, don’t try this. If you following along, you doing so at your own risk.
I’m documenting repairs for my reference and yours. I do synth restorations and repair with a specialty in vintage synthesizers, drum computer and other vintage gear, based in Düsseldorf, GER. Get in touch about your synth situation!
