Repair Yamaha TG-77 Vintage Synthesizer Display Reparatur Service

17. August 2020

Tags

Repair Yamaha TG-77 Vintage Synthesizer

Yamaha TG-77 Vintage Synthesizer. Condition: display and batteries needed to be replaced. First thing I did was to replace the battery in the extension card. Then I replaced the battery in the TG-77 with a battery holder, so it can easily be replaced next time.

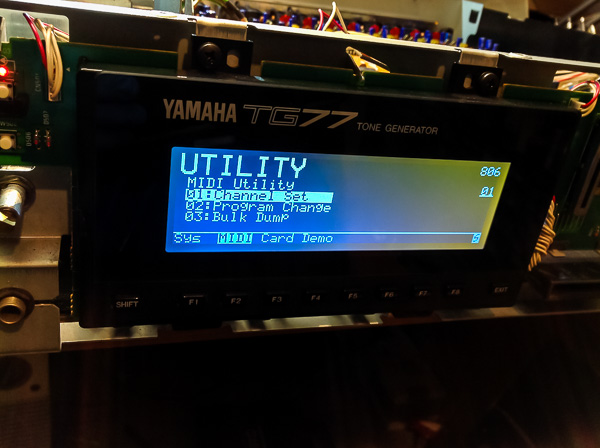

The new holder needed an extra hole on the pcb, but it fits quite nicely. The next thing I did was a reset and all errors were gone, the TG worked well. Now I disassembled the front to get access to the display. I used a modern black and white 5V 240 x 64 graphic display, so the inverter wasn´t needed anymore. I desoldered the ribbon wires from the old display and soldered them to the new one. I found two leaky electrolytic capacitors on the back of the old display.
